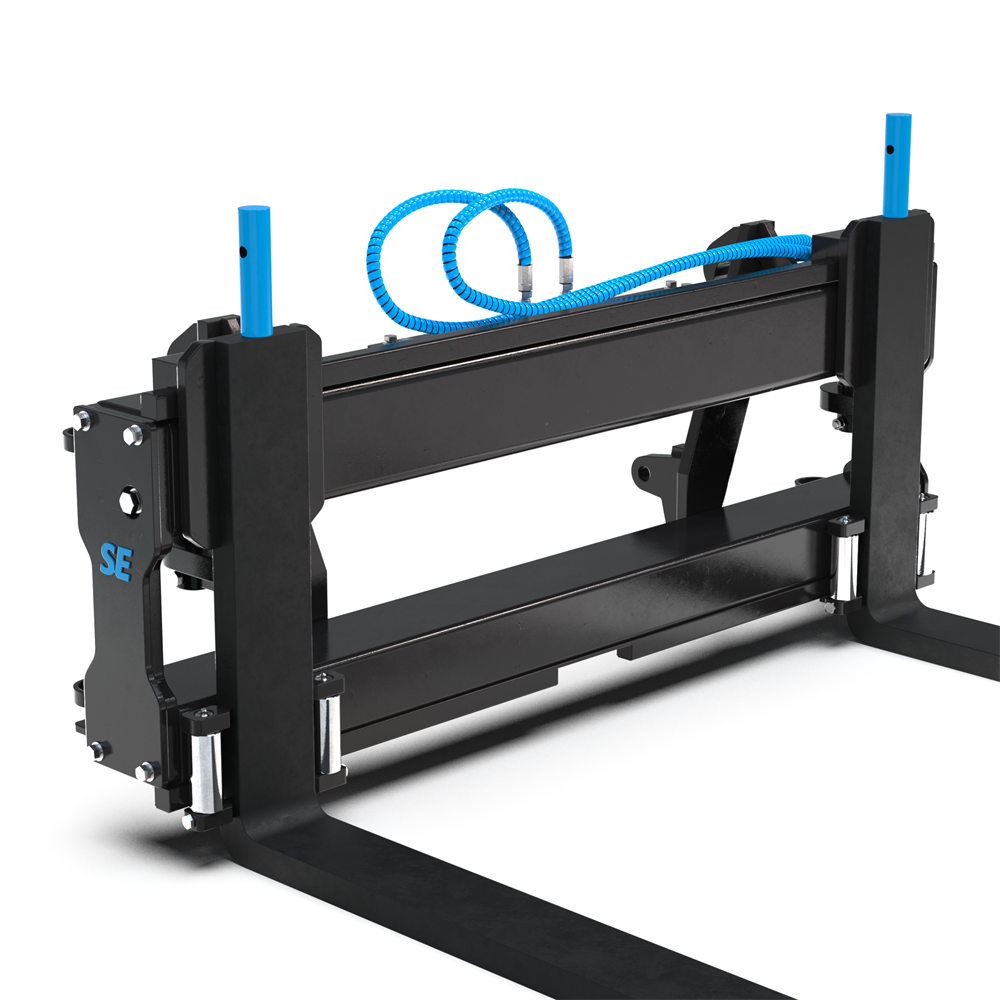

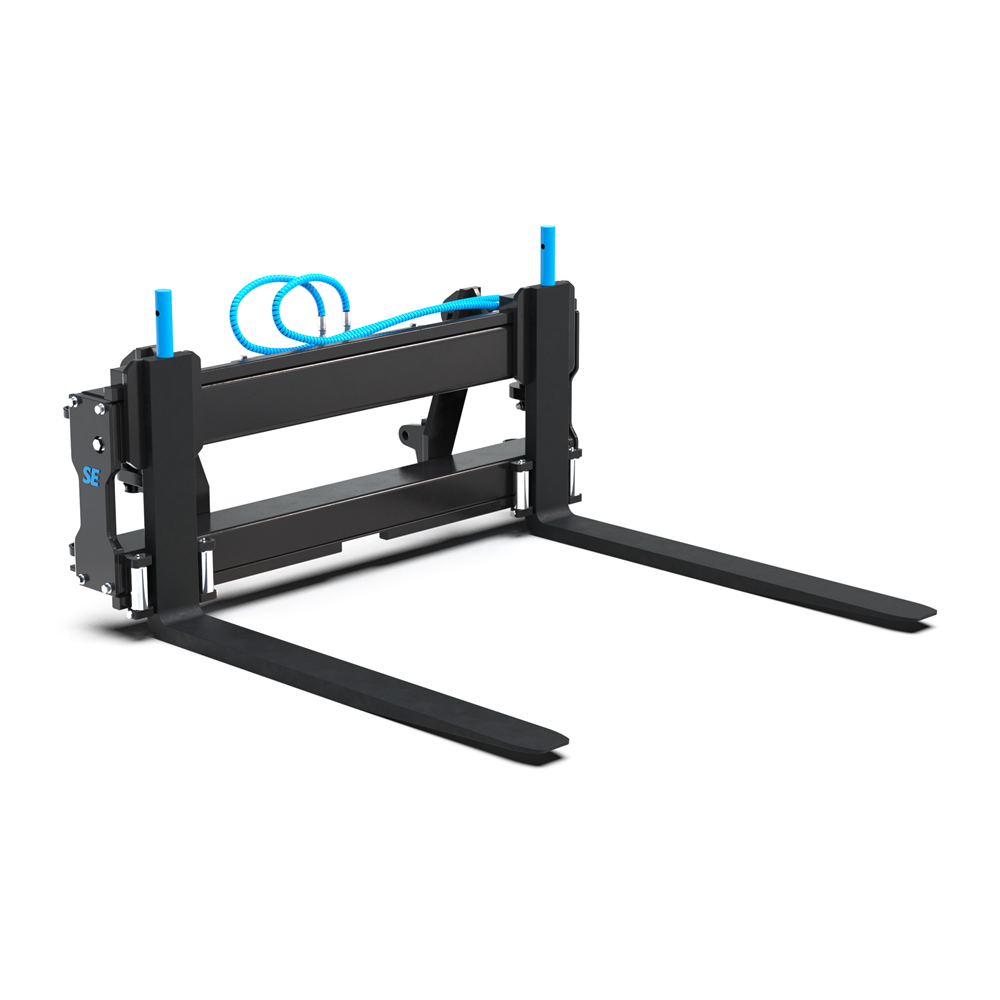

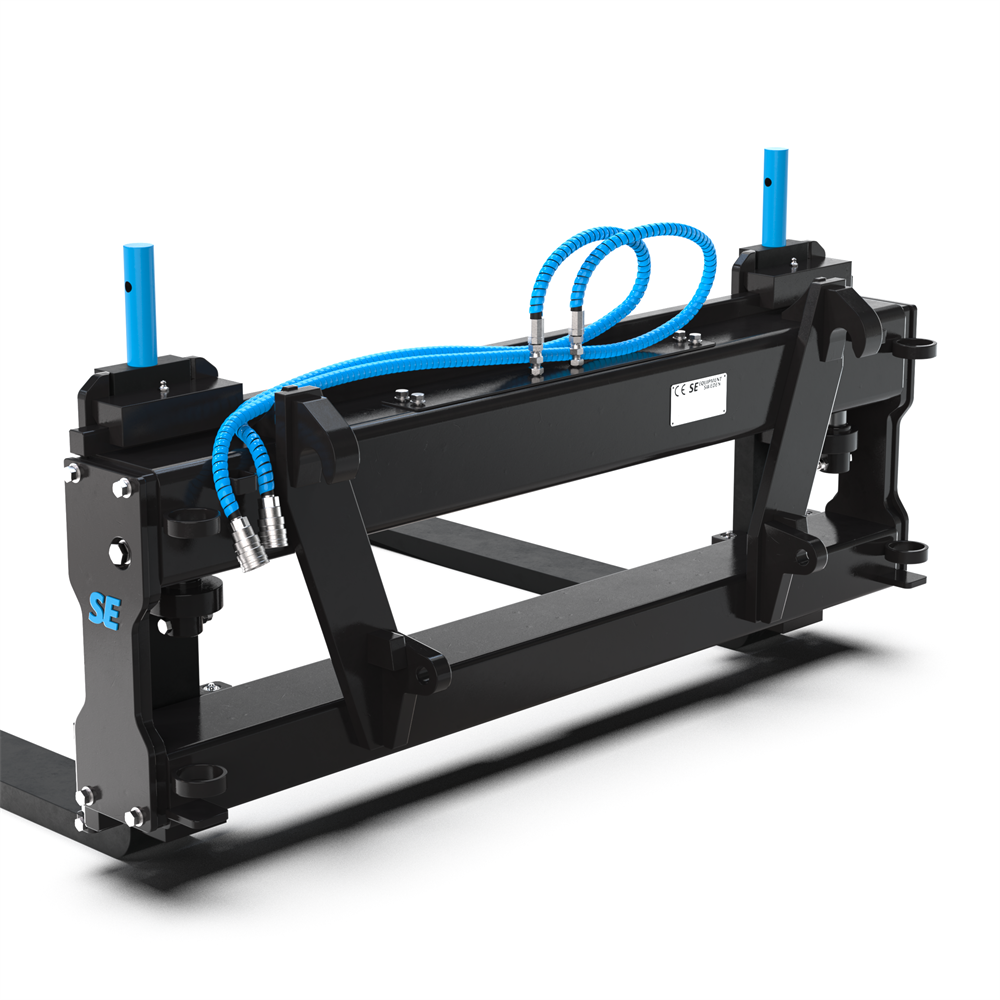

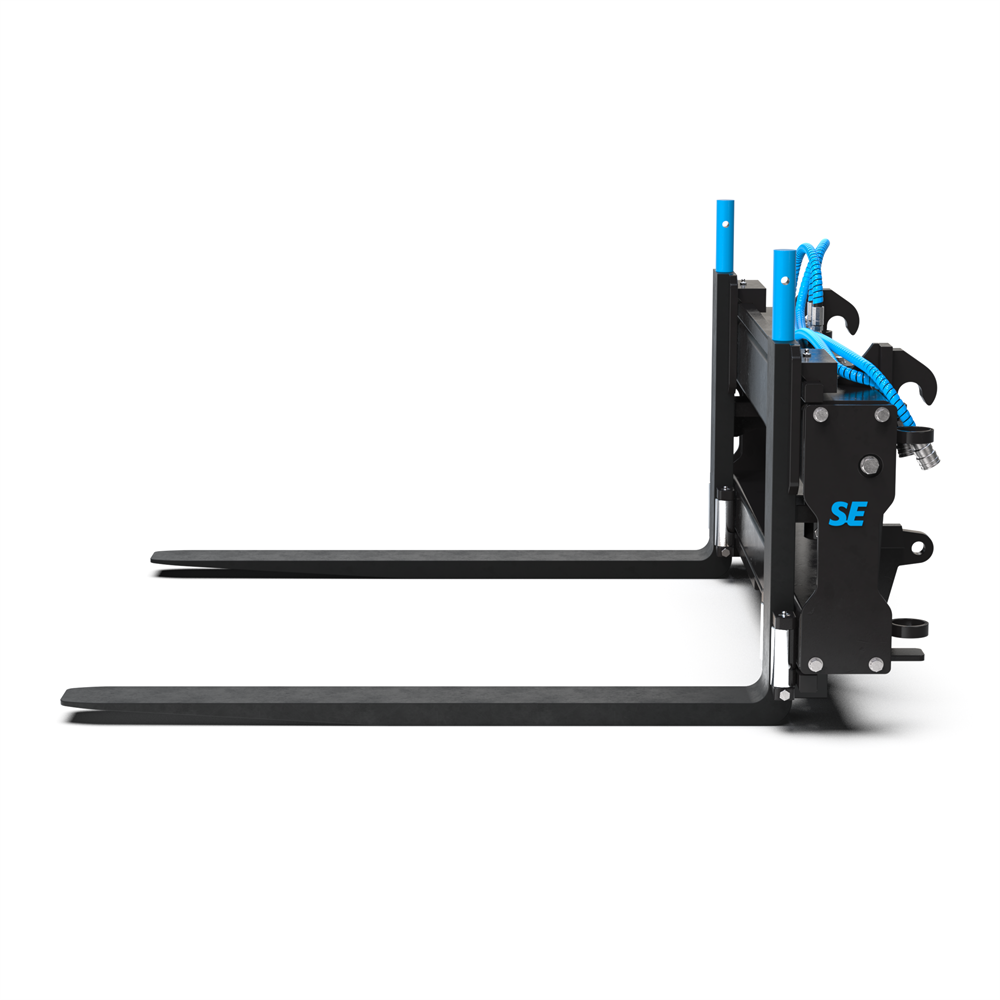

Hydraulic Pallet Fork Frame for Tractor – Robust and Protected Lifting Capacity with Integrated Cylinders
SE Equipment offers a robust hydraulic Pallet Fork Frame with Euro coupling, developed to meet high demands for safety, quality, and functionality. With a lifting capacity of 3 tons, this Pallet Fork Frame handles heavy and demanding lifts with ease. Thanks to integrated cylinders, they are effectively protected from damage caused by protruding objects, while serviceability is ensured through a convenient access hatch on the beam for easy maintenance.
The Pallet Fork Frame features hydraulic fork spread as standard with an adjustable width ranging from 140 mm up to 1150 mm and is equipped with forks measuring 120 × 40 × 1200 mm. The working pressure is 250 bar, and the frame is delivered complete with forks, hydraulic hose with standard coupling, and backrest.
Functionality
The hydraulic Pallet Fork Frame with Euro coupling is designed to provide safe and stable handling of goods. The integrated cylinders are strategically positioned to protect them from damage in harsh working environments, extending the tool’s lifespan. Through a service hatch on the beam, the cylinders are easily accessible for maintenance, simplifying servicing tasks.
The design includes three latches on the forks to reduce play, contributing to increased stability and safety during loading and transport. Thanks to the optimized construction, the operator also enjoys excellent visibility of the fork tips and working area.
Benefits
-
3-ton capacity: Handles heavy and bulky loads with high stability.
-
Protected integrated cylinders: Robust design that shields against external impact.
-
Service-friendly: Easy access to cylinders via hatch for convenient maintenance.
-
Hydraulic fork spread: Flexible adjustment from 140 to 1150 mm directly from the cabin.
-
Three latches on forks: Minimizes play and enhances safety during goods handling.
-
Optimal visibility: Improves precision and safety during lifting operations.
-
Complete delivery: Includes forks, hydraulic hose with standard coupling, and backrest.
Applications
This hydraulic Pallet Fork Frame is especially suitable for use in:
-
Agriculture: Handling bales, pallets, feed sacks, and heavy packaging.
-
Construction and civil engineering: Lifting and transporting building materials, pallets, and equipment.
-
Industry and logistics: Efficient material handling in warehouses and during transshipment.
-
Contracting: Safe and stable handling of heavy goods in varied environments.
With its high lifting capacity, protected cylinders, and sturdy construction, this Pallet Fork Frame is a reliable choice for professional users demanding both safety and functionality.
Order Your Hydraulic Pallet Fork Frame with Euro Coupling Today
Choose SE Equipment’s hydraulic Pallet Fork Frame with integrated cylinders for a safe and efficient workday. The combination of protected technology, high lifting capacity, and smart design makes this a premium lifting tool.
Buy now and experience the difference in safety, functionality, and quality!
