Mekaniskt gaffelställ med S40 fäste till grävmaskin

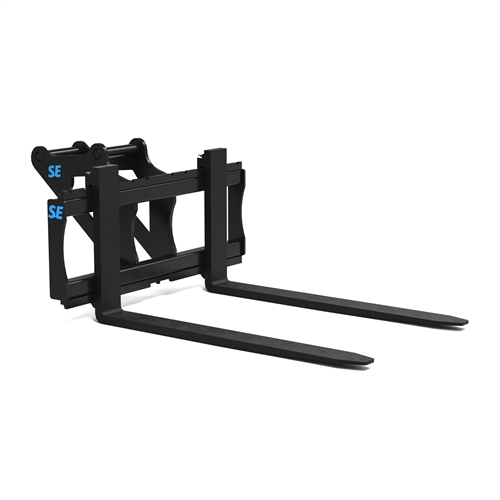

Bild visar: S40 1,5ton 1000mm

S1 Mechanical Pallet fork frame#5000 kg, 1500/1500mm

SE500028
/ Pcs.
In stock
Product question

What would you like to know about S1 Mechanical Pallet fork frame#5000 kg, 1500/1500mm?

Send
Recommended Machine weight 12-20 Ton
Capacity, kg 5000
Weight, kg 457
Width, mm 1500
Length, mm 1500

Description

Robust and User-Friendly Pallet Fork Frame for 12-20 Ton Excavators

This mechanical Pallet Fork Frame from SE Equipment, equipped with an S1 coupling, is a practical and powerful equipment solution for material handling with excavators in the 12-20 ton weight class. With a well-thought-out design, high capacity, and a strong focus on safety, it is a reliable choice for professional users.

Order Your Mechanical Pallet Fork Frame Today – Efficient, Safe, and Ready to Work

A carefully designed equipment solution for heavy lifting with easy handling. SE Equipment’s mechanical Pallet Fork Frame is built to meet the industry's high demands — making your work easier, safer, and more efficient.

Contact us today for pricing, delivery information, or assistance in choosing the right model for your excavator.

Features

  • Capacity: 5000 kg
  • Fork dimensions: 125 × 50 mm, fork length 1500 mm
  • Frame width: 1500 mm for high stability and reach
  • Open-frame design for optimal visibility from the operator’s position
  • Welded side stop plates and a central stop screw beneath the carriage beam for secure coupling
  • Hook-on mounting from the center of the carriage beam for easy installation and removal
  • Manual fork width adjustment with locking latch – fast and completely tool-free
  • Built according to European standard (FEM model) for maximum compatibility
  • Delivered complete with forks

Benefits

  • Handles very heavy lifting of pallets, construction materials, and machine components
  • Stable and secure operation even at maximum load
  • Improved precision and safety thanks to unobstructed visibility from the cab
  • Additional protection prevents forks from sliding sideways
  • Easy and time-saving installation with smooth manual fork adjustment
  • Standardized design allows for simple servicing and fork replacement
  • Delivered ready for immediate use

Applications

  • Construction sites and contracting work
  • Groundwork and material logistics
  • Industrial environments requiring heavy lifting capacity
  • Handling pallets, building components, and machine parts
  • Suitable for excavators in the 12–20 ton weight class

Specifications

Coupling
S1
Dimension
125x50x1500mm
Product
Pallet fork frame
More information
Forks included
